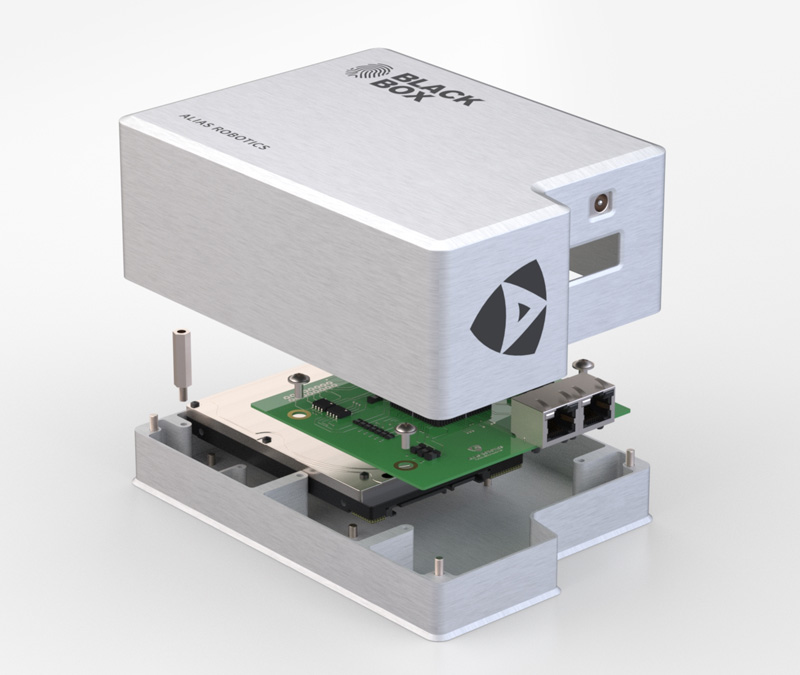

What is a
BlackBox?

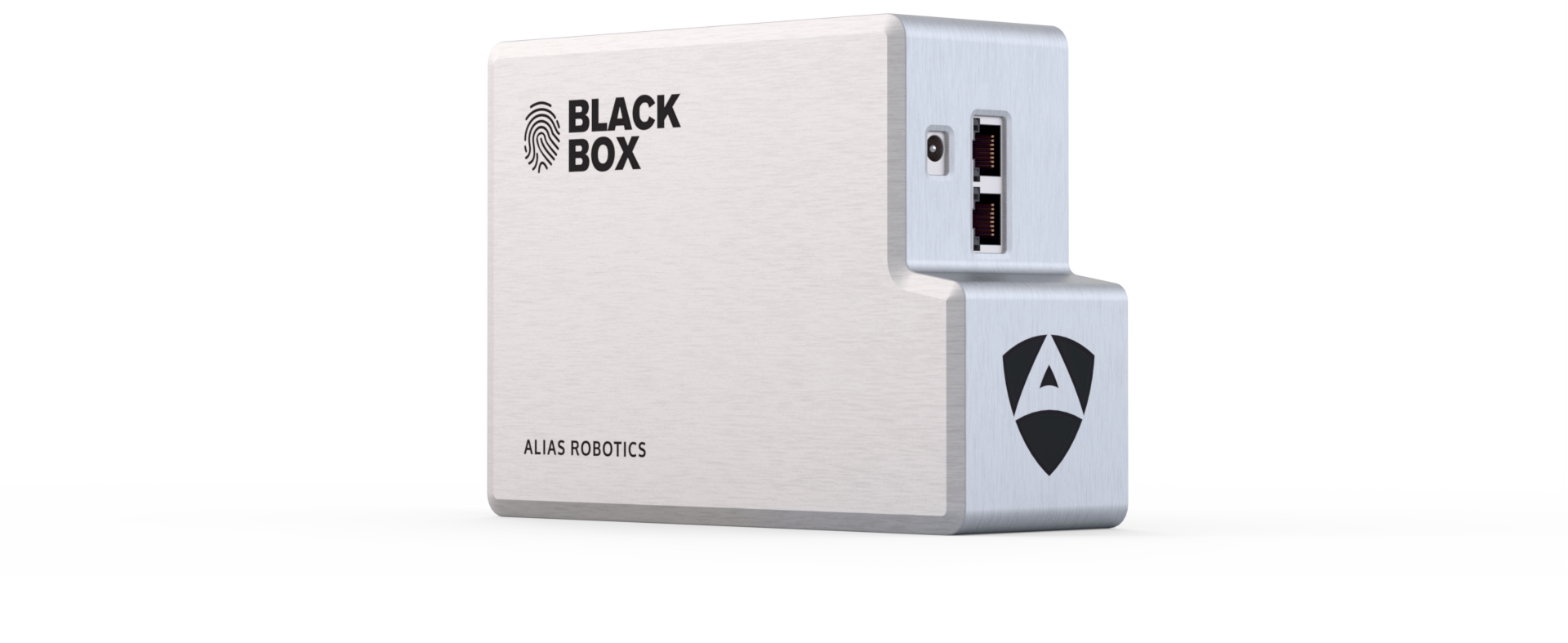

A ruggedized device that adds forensics recording capabilities without complexity.

An unprecedented leap in robot forensics and traceability that holds up to several months (or years) of robot network data recording. Welcome to the first ever made traceability device for robotics.

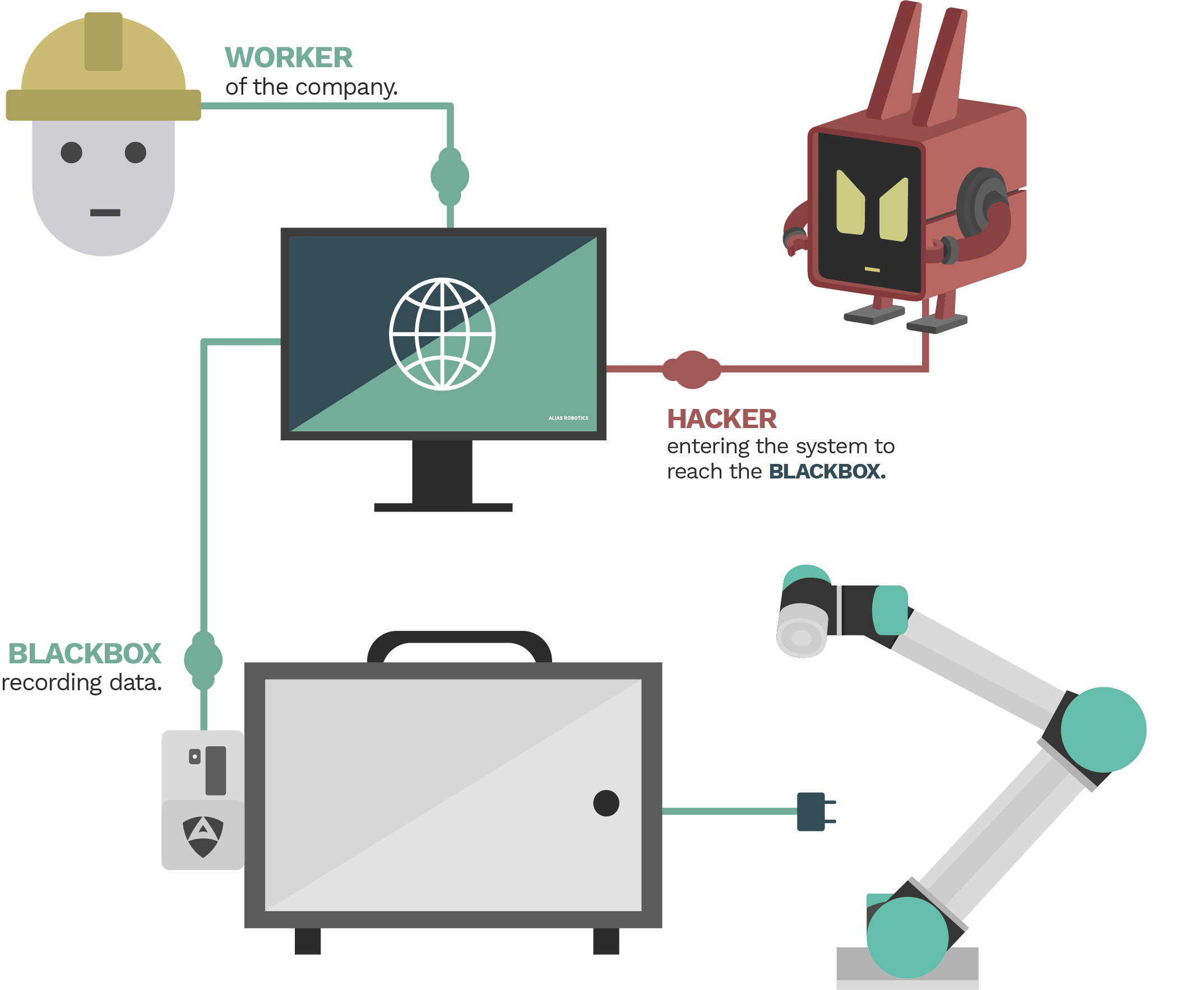

BlackBox provides a cutting edge robot forensics element: a secure data recorder. BlackBox empowers robot users to forensically identify cyber attacks, problems or malfunctions in their robots.

Get now!

Why do you need one in your robot?

Robotics is still on its infancy. Vendors are still maturing their products, users learning to use them and most technologies are fully vulnerable to security threats. Hazards are real and can lead to relevant losses[1].

BlackBox features an industrial-grade recorder system for robotics which combines cutting-edge technology with Plug & Play configuration. Capture all kind of relevant incidences. Get tracking of all actions done to your robots inside the company. Store the most relevant auditable information to ensure reliability. Gain robot visibility. Do not worry about untracked cyber attacks anymore or unwilled not registered actions.

More info

[1] Kirschgens, L. A., Ugarte, I. Z., Uriarte, E. G., Rosas, A. M., & Vilches, V. M. (2018). Robot hazards: from safety to security. arXiv preprint arXiv:1806.06681.

More about
the product...

Up to 4TB in storage.

Capacity can be modulated to your robot deployment.

Up to 500Mbps in recording spike.

Adapts to variable traffic speed requirements.

More than 4400h of robot data.

Measured at 2 Mbps for 4Tb storage.

Download

BlackBox
tech specs

APPLICATIONS

Forensic research

Robot traceability

Secure network data storage

PLATFORMS

(compatible with)

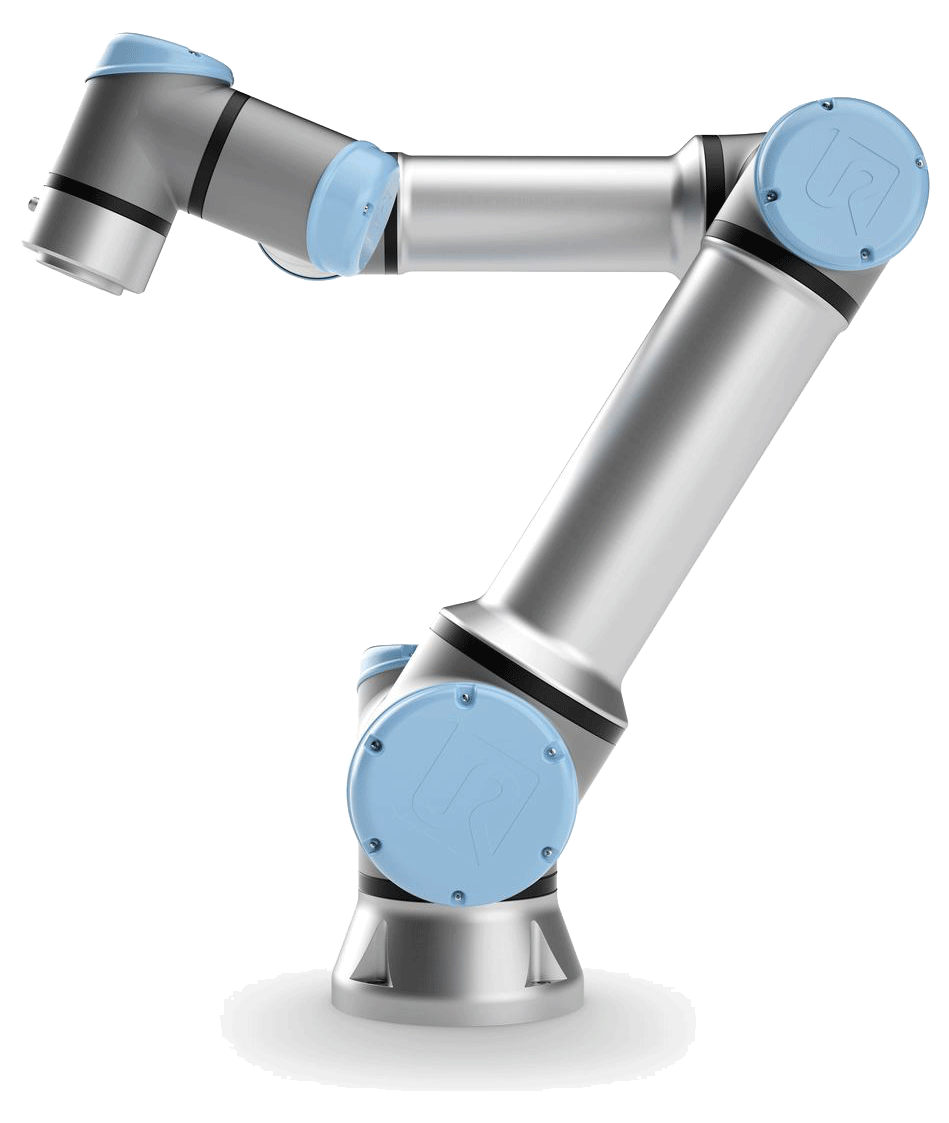

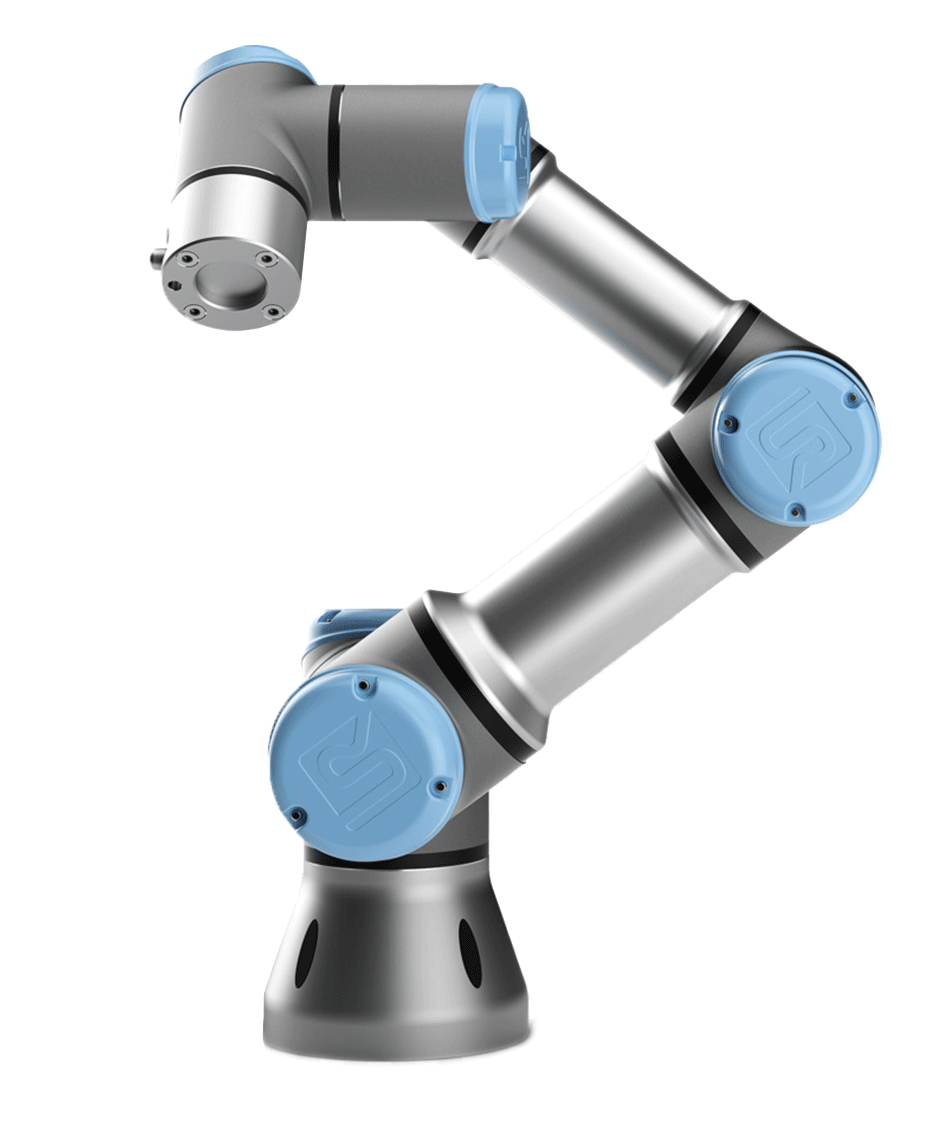

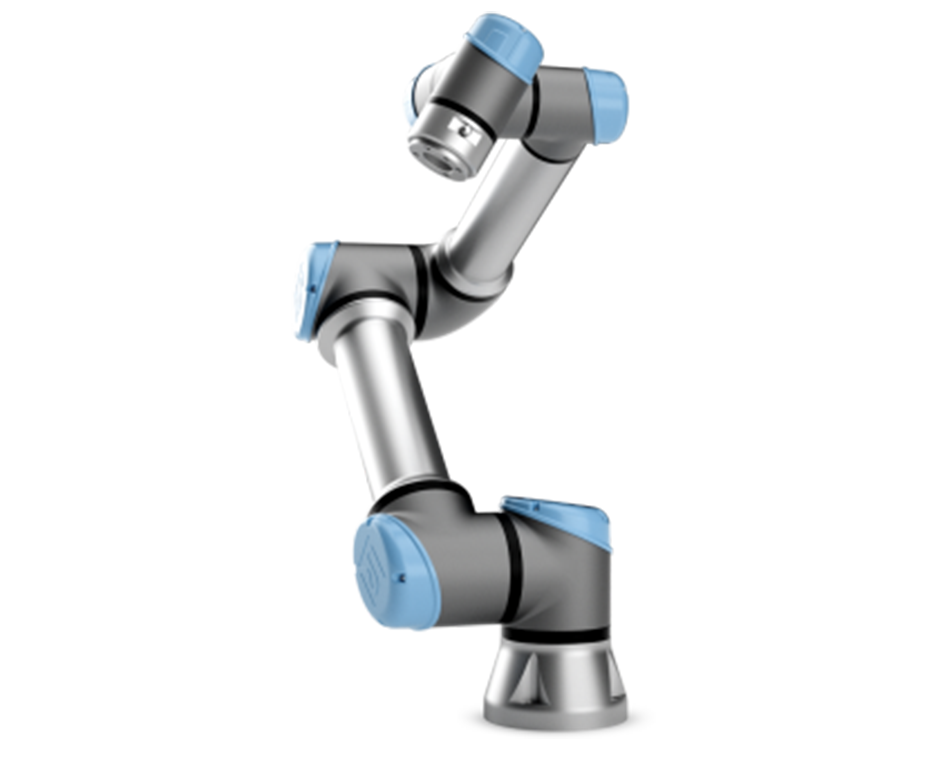

UR3 / UR5 / UR10

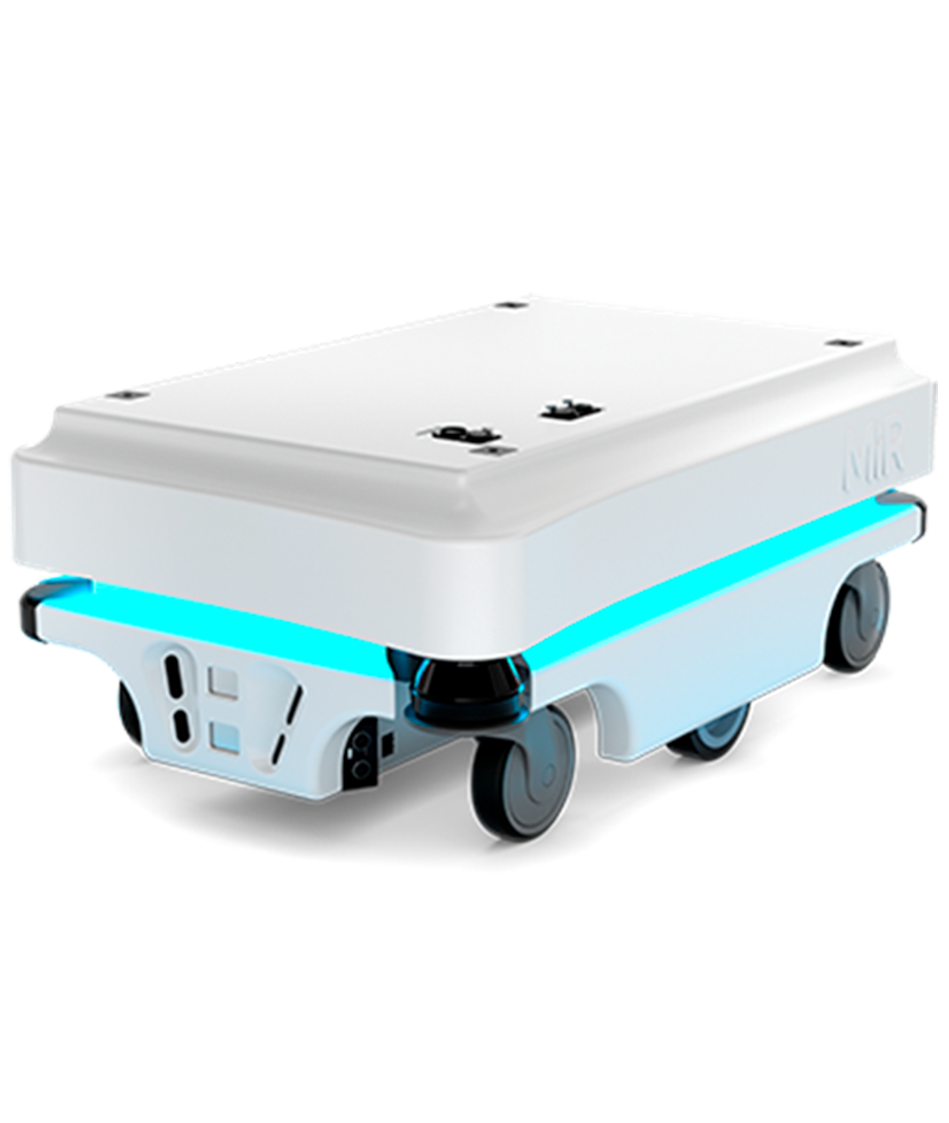

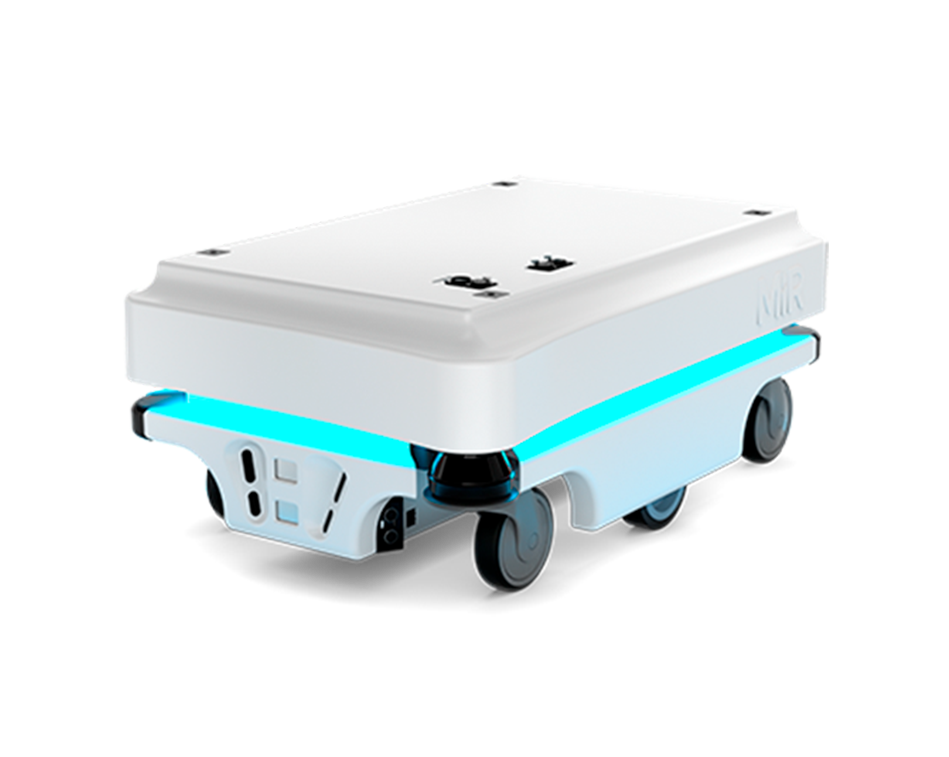

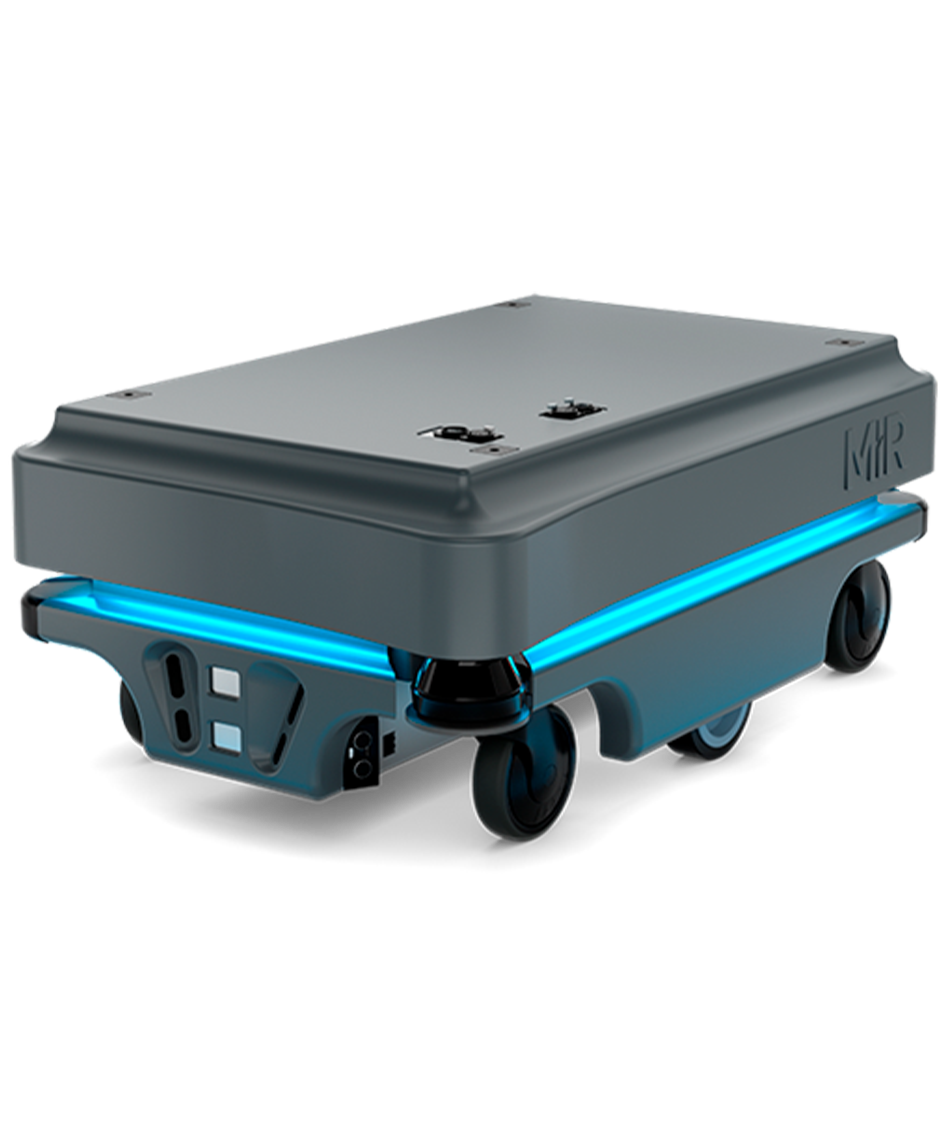

MiR-100

ROS (Kinetic, Melodic) / ROS2 (Eloquent)

HARDWARE
CHARACTERISTICS

Disk storage (HDD)

Power input

Max power consumption

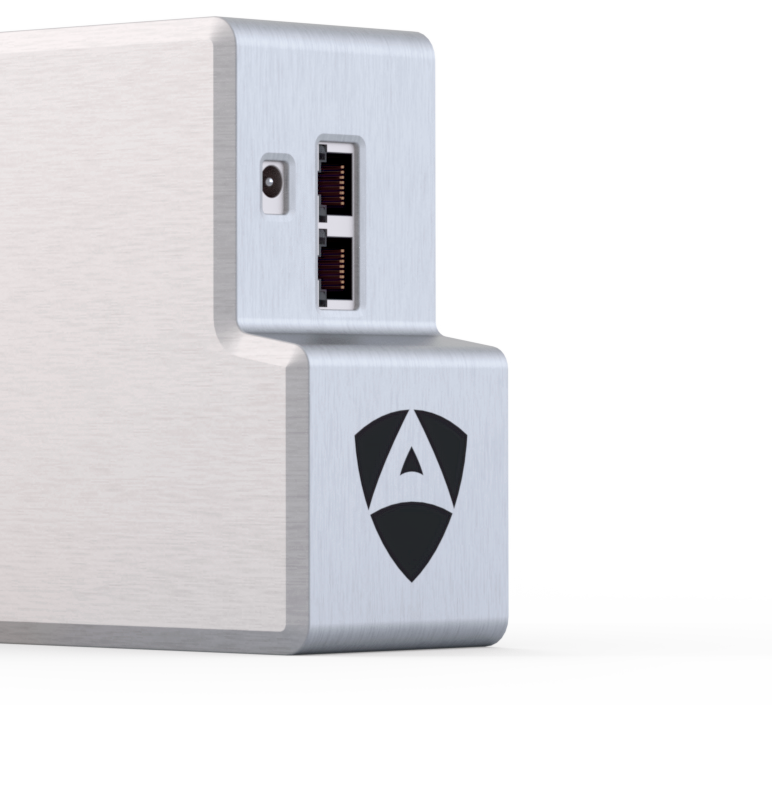

Communication interface


1TB / 2TB / 4TB

9V 4A

35,4W

IEEE 802.3
Gigabit Ethernet

Disk storage (HDD)

1TB / 2TB / 4TB

Power input

9V 4A

Max power consumption

35,4W

Communication interface

IEEE 802.3
Gigabit Ethernet


POWER SUPPLY

Power input

Power output

100-230Vac 50/60Hz

9V 4A

Power input

100-230Vac 50/60Hz

Power output

9V 4A

MECHANICAL
CHARACTERISTICS

Weight

Materials

Colour

Dimensions

750g

Aluminium

Orange or Silver

120 x 165 x 58 mm



Weight

750g

Materials

Aluminium

Colour

Orange or Silver

Dimensions

120 x 165 x 58 mm

SOFTWARE
CHARACTERISTICS

Communication interface

Average throughput accepted without data loss

Max throughput without data loss

Data encryption and signing using

Public-key encryption

Secure communication with Blackbox

Blackbox configuration


1 Gbps Ethernet

20 Mbps

60 Mbps

OpenPGP standard
(RFC4880)

RSA-3072

SSH protocol

Text user interface

Communication interface

1 Gbps Ethernet

Average throughput accepted without data loss

20 Mbps

Max throughput without data loss

60 Mbps

Data encryption and signing using

OpenPGP standard
(RFC4880)

Public-key encryption

RSA-3072

Secure communication with Blackbox

SSH protocol

Blackbox configuration

Text user interface


KEY BENEFITS

Industrial-grade hardware

Robotics-specific

Cyclic or saturation
recording modes
